Med TPC-FPM serien står du fritt til å velge størrelse på skjermen og dens egenskaper samt å velge CPU-modul som er tilpasset dine applikasjoner.
TPC-FPM serien inneholder også skjermer med høy lysstyrke på opptil 1800 cd/m².
Dette gjør at du kan tilpasse ditt eget Panel-PC behov mer fleksibelt mens du holder deg innenfor samme serie. Du kan f.eks. benytte skjermer med høy lysstyrke ute og ha standard skjermer inne, samtidig som du bruker samme CPU-modul.
Innovativ design i den modulære TPC-serien
Standard skjerm moduler
FPM-D12T-CE
12.1" (4:3) modular front display design compatible with TPC-B520, TPC-B300 models
- 600 cd/m² luminance with 1024 x 768 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D15T-CE
15" (4:3) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 300 cd/m² luminance with 1024 x 768 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D15W-FCE
15.6" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 450 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D17T-CE
17" (5:4) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 350 cd/m² luminance with 1280 x 1024 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D18W-FCE
18.5" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 350 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D19T-CE
19" (5:4) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 350 cd/m² luminance with 1280 x 1024 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D21W-CE
21.5" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 250 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D24W-CE
23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- 350 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
Skjerm moduler med høy lysstyrke
FPM-D12T-HE
12.1" (4:3) High Brightness modular front display design compatible with TPC-B520, TPC-B300 models
- Sunlight readable with 1000 cd/m² luminance with 1024 x 768 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D15T-HE
15" (4:3) High Brightness modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- Sunlight readable with 1800 cd/m² luminance with 1024 x 768 resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D15W-FHE
15.6" (FHD) High Brightness modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- Sunlight readable with 1200 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
FPM-D21W-HE
21.5" (FHD) High Brightness modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
- Sunlight readable with 1400 cd/m² luminance with 1920 x 1080 (FHD) resolution
- High durability and performance with industrial-Grade LED LCD
- Advanced projected capacitive (P-CAP) technology
- IP66-rated front panel and panel mount support
- User-friendly system status LED indicators
CPU moduler

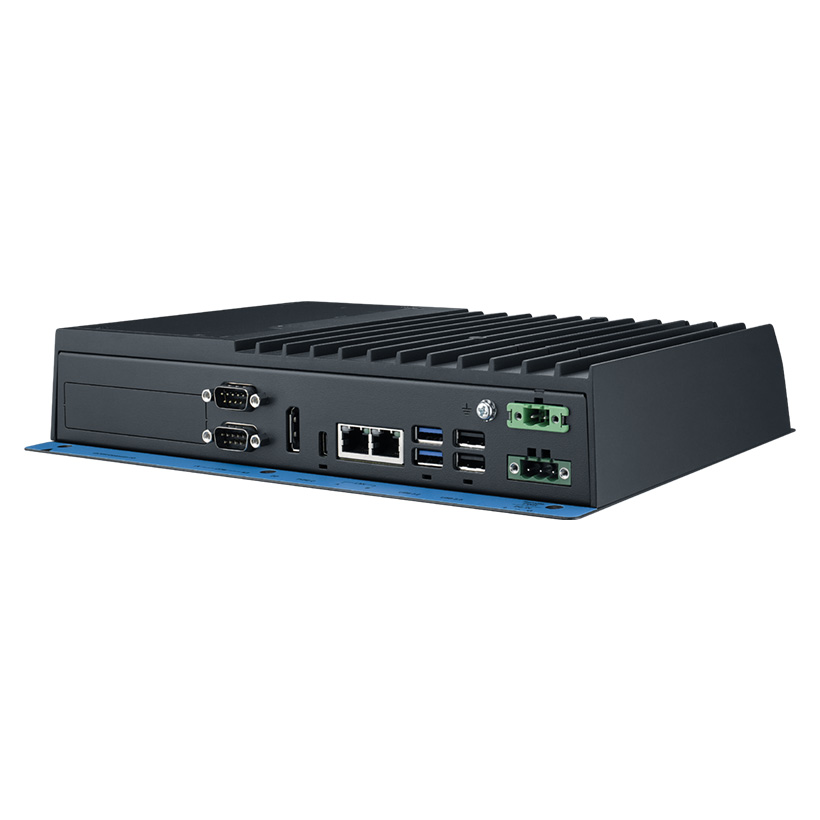

TPC-B520
Modular TPC - Computing Box Module with Intel® Core™ processors (13th gen)
- Modular Computing Box powered by Intel® Core™ processors (13th gen) i5-1335UE deca-core/ i7-1365URE deca-core processor
- Single DDR5 Memory slot supports up to 32GB
- Support expansion via three M.2 slots (NVMe, Wifi, 5G)
- LAN, POE, isolated serial port and isolated digital I/O via iDoor technology
- Support Type C connector with USB 3.2, DP 1.4a, 15W power delivery
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)
TPC-B300
Modular TPC - Computing Box Module with Intel Atom and Celeron CPU
- Computing Box powered by Intel Atom® X6425E/ Intel® Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe for iDoor expansion
- 1 x M.2 Key-E 2230 for WIFI + BT module
- 1 x M.2 Key-M 2280 for NVMe SSD (PCIe Gen 3 x 2)
- 1 x 2.5” SATA SSD expansion
- 2 x 2.5Gb LAN
- Supports TPM2.0 hardware security
- Wide Temp Support. Range -20~60 °C (Atom™ X6425E)
TPC-B610
Modular TPC - Computing Box Module with Intel® Core™ processors (10th gen)
- High Performance Computing Box powered by Intel® 10th Gen. Core™ i CPU Socket (LGA1200) with fanless design
- 6 x Panel Modules (IP66) ranging from 15" to 23.8" in selection
- Dual Channel Memory slots (DDR4) support up to 64GB in total
- Comprehensive I/Os, including 6 x USB, 2 x COM, 2 x RJ45...etc
- Supports Expansion via 1 x PCIe x16, 1 x mPCIe, 2 x M.2 (NVMe, SATA, 5G)
- Supports Storage via 2 x 2.5" HDD/SSD (RAID 0/1), 2 x M.2 (2242/2280)
- Supports Fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Supports Diverse system I/O, DIO, PoE...etc. via iDoor technology
- Supports TPM 2.0 hardware security
TPC-B510
Modular TPC - Computing Box Module with Intel® Core™ processors (8th gen)
- Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 32GB in total
- Compact, fanless embedded system with chassis grounding protection
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security
- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" & 19" features 5-wire resistive touch)

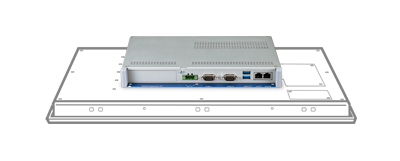

TPC-B200
Modular TPC - Computing Box Module with Intel Atom® and Intel® Celeron® processors
- Computing Box powered by Intel Atom® E3940/ Intel® Celeron® J3455 with 4 GB (up to 8GB) SODIMM SDRAM
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe
- M.2 and SSD expansion
- Supports TPM2.0 hardware security
- Wide Temp. Range -20~60 °C (Atom™ E3940)
- Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology)

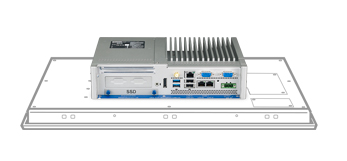

TPC-B500
Modular TPC - Computing Box Module with Intel® Core™ processors (6th gen)
- Computing Box powered by Intel® Core™ i3-6100U/i5-6300U/ i7-6600U with 8GB SODIMM
- Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology) (iLINK technology)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 2 x Full-size mini PCIe
- 1 x Half-size PCIe (Max. Dimension of PCIe card: 167.65mm x 64.41mm x 14.48mm (D x W x H)
- M.2 and SSD expansion
- Supports TPM2.0 hardware security
